Steering wheel omnidirectional mobile trackless transfer cart Product Catalogue

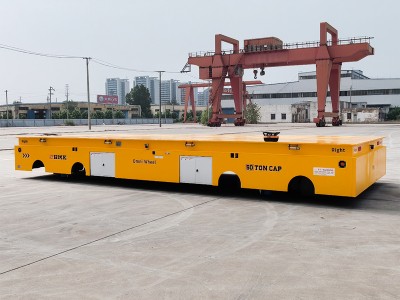

Remarkable steering wheel driven omnidirectional transport cart is composed of five major parts: car's steel frame, battery, steering wheel system, electrical system and safety detection. It can add a variety of application modes such as hydraulic lifting and roller system. The unique steering wheel system, which can move horizontally, obliquely, rotate 360 degrees in place,and move freely in narrow spaces. It is a very popular handling tool for modern industrial material transportation, and is used in various fields of modern industrial production. Remarkable provides 1 to 150 tons of non-standard customized solutions.

Advantages: Small turning radius, move freely in narrow spaces; Strong climbing ability; Automatically stop when encountering obstacles; Supports multiple moving routes; Supports touch screen operation; Supports path tracking and remote control; Can be intelligent and upgraded to AGV

Ps:Depending on your specific needs,our transfer carts/trolleys could be installed Various types of functions and devices.

Customizable Items

Technical Parameters Table Of Omni-Directional Series Electric Trackless Transfer Cart
Rated Load Capacity (t)		2	5	10	15	20	30		50	60	80	100	150	200
Table Size(mm)	Length	2000	2400	2700	3000	4000	4500		4500	5000	6000	6500	6500	6500
	Width	1300	1500	1800	2000	2000	2200		2200	2500	2500	2500	3000	3000
	Height	450	500	550	700	700	700		650	700	700	700	750	750
Ground Clearance (mm)		≥50				≥100
Turning Radius (mm)		0
Steering mode		Steering Wheel/Omni Wheel Steering						Differential Wheel Set Systems
Operation Method		Remote Control & Hand Operate Pendant
Move Way		Omnidirectional movement，Forward/backwards, rotation left/right, crab driving left/right,turning while driving with no stop，rotate 360° in place
Running Speed (m/min)		25				20
Motor Type		DC Servo Motor
Brake Mode		Electromagnetic Brake
Protective Measures		Audible and visual alarm lamp+ Emergency stop button+Laser obstacle avoidance sensor(Optional)+Anti-collision contact edge(Optional)
Wheel Quantity		4				8					12			16
Suspension Type		Mechanical Automatic Regulation									Hydraulic Suspension
Drive Wheel Diameter (mm)		Ф200	Ф250	Ф300	Ф410	Ф300	Ф410		Ф400	Ф500	Ф400	Ф500	Ф550	Ф550
Wheel Material		Steel Core + Polyurethane
Battery Capacity (kW·h)		4.8	7.2	10.5	12.5	14.4	15.1		22.5	30	37.8	45.3	60.5	75.6
Battery Type		Lead-Acid Battery					Lithium Battery
Battery Endurance		5h Customized As Needed					4h Customized As Needed
Battery Charging Time		≤7h					≤5h
Battery Charger		AC220V/AC380V
Ground type		Cement Floor、Steel Plate Ground 、Epoxy Floor,Asphalt Floor
Full-Load Climbing Capacity		3%
Working Environment		Temperature: -10°c～40°c; Humidity: 20%～80%, No Condensation (Customized for high-temperature and explosion-proof environments)
Vehicle Body Color		Customized
Other Functions		Battery Power Display,PLC,Visual Display Screen Designed On The Electric Control Cabinet ,Over Voltage, Under Voltage, Over Current Protection etc
Versione Automatica – AGV		With navigation modes such as magnetic navigation, laser navigation, QR code navigation, and ribbon navigation, the AGV can achieve automatic handling functions.
Notes: 1) Other table sizes and load capacities can be customized according to user requirements. 2) The number of wheel sets can be flexibly configured based on vehicle dimensions and load capacity. 3) This transporter series supports multiple navigation modes (magnetic, laser, QR code, or tape guidance) for AGV automated operation. 4) Battery type and operating time (battery endurance) can be customized to meet customer needs. 5) The product is subject to continuous improvement and upgrades; specifications in the table may change without prior notice.

160 ton heavy load transporter omnidirectional mobile trackless transfer cart
70 tons heavy-duty omnidirectional transport cart
Multi-Drive battery transport cart with omni wheels
Heavy duty omnidirectional transfer cart with roller design

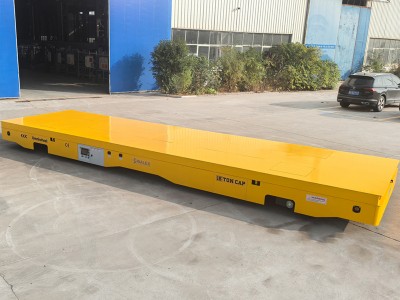

15 ton Steering wheel omnidirectional mobile trackless transfer cart
Multiway Battery Transport Cart
20 tons Industrial Material Handling Carts products pallets equipment
6 Tons Steering wheel Steel pipe trackless transfer cart
Self propelled electric transfer trolley

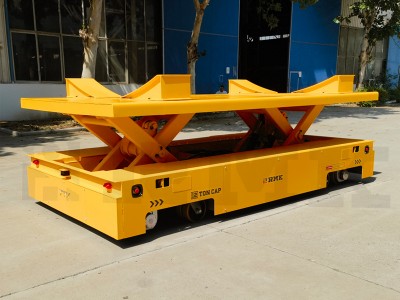

5 tons omnidirectional trackless transfer cart with hydraulic lifting

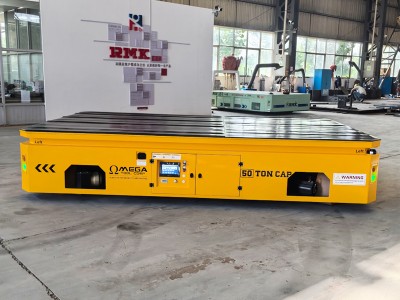

Heavy load battery powered mold transfer cart
Battery powered multidirectional transfer cart
Electric multidirectional heavy duty transfer cart
Aircraft Maintenance Transport Cart
Oil Storage Tanks Handling Heavy-Duty Electric Transport Cart
40 tons Omnimove transfer cart with dual platforms

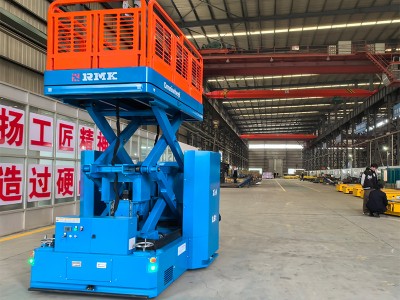

Battery Trackless Transfer Cart Omni Wheel With Scissor Lift
30 Ton Hydraulic Lifting Transfer Cart
Omnidirectional Moving Trackless Transfer Cart
Steering wheel omnidirectional mobile trackless transfer cart

Typical Application

Multi-device cooperation

In intelligent factories and automated workshops, transfer carts/trolleys must be highly intelligent or AGVizd, and can work with other equipment and operation platforms to realize intelligent manufacturing and fully automaed production. In response to such needs, Remarkable has designed and produced multifunctional transfer cart and multivehicle coordinated operation transfer cart. Various devices can be installed on the countertop of the multifunctional transfer cart and multivehicle coordinated operation transfer cart to fit the intelligent requirements and automated programs in customers' production processes.

Anti-high temperature & Explosion-proof

In industries such as metallurgy, coal, military, nuclear power, Chemical, sandblasting, spray painting, transfer carts/trolleys usually work in high-temperature conditions, and anti-high temperature & explosion-proof are necessary functions of transfer carts/trolleys. Coping with high temperature environment, Remarkable proposed the following solutions: using anintegral frame structure that is compressive, tensile, and anti-high temperature; installing high load bearing wheels and hot dip galvanizing grille plates with good heat dissipation performance. In order to make a cart/trolley has explosion-proof function, the electric box, wheels, car body and remote controller we have configured for it have reached explosion-proof level.

Complex and special environments

Sometimes, industrial materials need to be transported in complex and special environments, which asks more from transportation tools. Our steering wheel omnidirectional mobile trackless transfer carts and RGV automated rail transfer carts/trolleys (such as the ferry rail transfer trolley and the vertical and horizontal moving automated rail transfer trolley) can solve this kind of problem. The advantages "free and flexible driving in all directions and small turning radius" of the steering wheel omnidirectional mobile trackless transfer cart, the design of "the main vehicle and the sub-vehicle" of the rail ferry transfer trolley and the rail change function of the vertical and horizontal moving automated rail transfer trolley are specially designed for complex and special environments.

PS:In addition to the applications described above, Remarkable can solve many more industrial material handling problems. We are able to meet all your needs!

Application

Remarkable provides customized industrial handling solutions and various application material transport solutions to the world. To solve material handling problems for important customers in industries such as Aerospace industry, nuclear power, steel,shipyard,heavy industry, manufacturing, power and electrical, hydropower and wind power, petroleum, Chemical Industry, Automotive manufacturing, new energy, construction, high-speed railway bridges, metallurgy, coal, security and communication, scientific research institutions (universities), and animal husbandry. Remarkable transportation solutions are applicable to various industries around the world. Its products have been exported to the United States, Mexico, the Netherlands, Poland, Saudi Arabia, the Czech Republic, Italy, Switzerland, Türkiye, Singapore, Thailand and other countries.

Aerospace equipment

Nuclear Power

Shipyard

Power and Electrical

Automotive manufacturing

Buildings, high-speed railway bridges

Equipment manufacturing

Steel & Foundry

Chemical Industry

Oil & Natural Gas

New energy

Research institutions

Home appliance communication industry

Animal husbandry

Cooperative Customer

Faq

Frequently Asked Questions

Q: What Material To Handle?

A : ----------

Q: What’s The Transfer Car’s Load Capacity And Table Size You Need?

A : All Of Our Transfer Cars Are Made To Order, We Can Design It According To Your Requirements And Needs.

Q: Cart Traveling Type?

A : RailWheel

Q: Loading Capacity?

A : --------------Tons

Q: Platform Size?

A : ---------------Mm*-------------Mm

Q: Power Supply?

A : CableBus BarRailBatteryLow VoltageOther

Q: What Cargo Will The Car Transport?

A : Our Transfer Car Is Suitable For Steel Mill, Aluminum Plant, Metallurgical Industry, Mold Factory, Material Transfer Workshop, Shipyard, Crane Parts Transfer, Cable Coil Transfer, Precast Concrete Transfer, Ladle Transport And So On.

Q: Will The Car Move On The Cement Floor Or On The Track?

A : If It Moves On The Track, Have You Installed The Track?If It Moves On The Cement Floor, Is There Any Slope, Water Or Oil On The Floor?

Q: What’s The Car’s Working Time Per Day And Moving Distance In Single Direction?

A : We Can Suggest The Power Supply Mode For You According To Your Working Time And The Car’s Moving Distance.

Q: How Many Transfer Cars Do You Want?

A : We Don't Have A Minimum Order Limit, But We Can Give You A 5% Discount If You Buy More Than 3 Sets Of Cars.

Q: What Power Supply Mode Do You Prefer?

A : There Are Some Power Supply Modes For You Choosing, Such As Battery Power, Cable Reel Power, Cable Drum Power, Low Voltage Rail Power, Busbar Power And Diesel Engine Power.

Q: What Delivery Term Do You Prefer? FOB/CIF

A : If CIF, What’s The Destination Seaport?If FOB, We Usually Deliver The Car To Qingdao Port, But We Can Accept Your Designated Seaport.

Q: Price Term?

A : Ex-WorkFCAFOBCIF/CIPDDP/DDU

Q: What Term Of Payment Do You Accept?

A : Generally Speaking, We Accept 50%T/T Deposit In Advance,The Balance 50% Is Paid By T/T Before Dispatch. However, 30% T/T Deposit In Advance, The Balance 70% Is Paid By T/T Before Dispatch Also Can Be Accepted To Meet Your Demand In Order To Further Cooperation. Of Course, The L/C Also Is OK.

Q: How Long Is The Delivery Time?

A : About 45 Days, According To The Customer's Requirements To Complete The Delivery Time.

Q: How Many Certificates?

A : ISO9001、CE、SGS And So On.

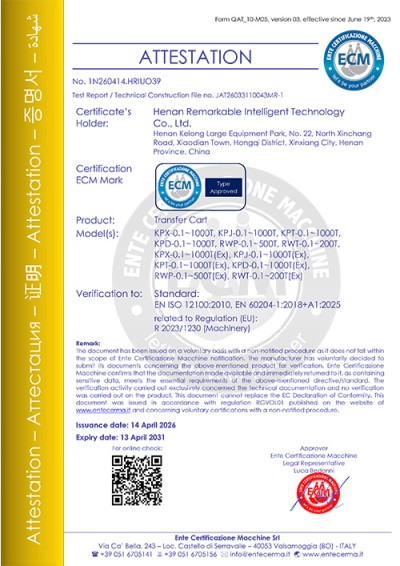

Our products have certificates of CE, ISO9001, etc.

4P = Prediction + Pretreatment + Process + Performance

The FirstP

Prediction

At the very beginning of formulating a solution, our engineers will predict the faults that might occur during the equipment utilization relying on their rich experience, and avoid quality risks in advance.
The SecondP

Pretreatment of Material

Before getting inside the warehouse, all steel plates must be pretreated and testified to be qualified.
The ThirdP

Process Inspection

There is quality inspection in every process. The previous process can be allowed to enter the next one only if it is qualified. The whole process inspection records must be well preserved.
The FourthP

Performance Test

Before delivery, all the transfer carts/trolleys must undergo performance test, including load forward and backward, obstacle avoidance, omnidirectional mobile, slope climbing, lifting, wireless remote control, etc.
