Customized trackless transfer cart

Customized trackless transfer cart does not rely on rails and has high maneuverability and flexibility, so it is more suitable for material handling across multiple workshops. It is widely used for the transport of molds, coils, billets, and other large heavy loads. This type of carts is well received by users and has been exported to many countriesthe such as the United States, Italy, Singapore, Poland, the Netherlands, Mexico, Saudi Arabia, the Czech Republic, Sri Lanka, Mongolia.

Advantages: Drive straight, turn a corner, along L/U/ S shaped tracks; Modular design, easy to maintain; Small turning radius, rotate 360 degrees, turning while traveling; Automatically stop when encountering obstacles; Long service life, easy and low-cost to replace the motor; Low noise, environmentally friendly; Can be intelligent and upgraded to AGV

Ps:Depending on your specific needs,our transfer carts/trolleys could be installed Various types of functions and devices.

Customizable Items

Technical parameters for trackless electric transfer carts
Rated load（t）	5	10	15	20	30	40	50	150
Impacted rated load（t）	7.5	15	22.5	30	45	60	75	225
Structure of frame	Steel plates welded, beam structure
Max. wheel load（t）	2.8	4.3	4.8	5.6	7.7	10	12	27
Ground requirement	Cement floor					Steel plate ground
Ground requirement	Cement floor					Steel plate ground
Table size（mm）	3000×2000	3600×2000	4000×2200	4500×2200	5000×2200	5500×2300	6000×2300	10000×3000
Height of the whole cart（mm）	450	530	600	600	650	700	700	1200
Ground clearance（mm）	50							75
Wheels base（mm）	1500		1700			1800		2000
Axles distance（mm）	2500	3100	3400	3900	4300	4800	5200	10000
Turning radius（mm）	2501	3101	3401	3901	4301	4801	5201	10001
Turning type	Turning while driving with no stop
Control method for turning	Control button
Turning structure	Mechanical
Motor power（Kw）	3.5	5	6	7	10	12	15	15
Wheel diameter（mm）	Ф300 x 4	Ф350 x 4		Ф400 x 4	Ф400 x 6	Ф500 x 6		Ф600 x 8
Wheel material	ZG55+hydropur ture
Running speed（m/min）	0-15					0-12
Brake principle	Electric magnetic brake
Operation method	With wire or no wire
Battery model	D-250 x 24	D-33 x 24	D-400 x 24	D-440 x 24	D-250 x 36	D-330 x 36	D-440 x 36	D-600 x 36
Battery maintenance	Free of maintenance
Charger's installation	Installed on cart				Split-type
Charger function	Automatic charging
Radar control	3-0.3m， automatic stop for obstacles
Warning equipment	Sound and light
Other functions	Turning light, night light and power display

Intelligent trackless transfer cart
Trackless transfer cart applied in the water conservancy industry
Motor factory handling cart 30 tons battery transfer cart
Industrial 30 tons hydraulic lifting heavy-duty trackless transfer cart
Customized trackless transfer cart
80 tons hydraulic steering trackless trolley
60 tons hydraulic steering lift trackless transfer cart
25 ton mold trackless transport cart
Explosion proof electric transport cart
Customized explosion-proof trackless transport cart
Industrial material handling omnidirectional trackless transfer cart
Industrial transporters Electric Trackless transfer cart
Workshop material trolley 25 tons handling cart
Mold transport cart lifting trackless electric transfer trolley

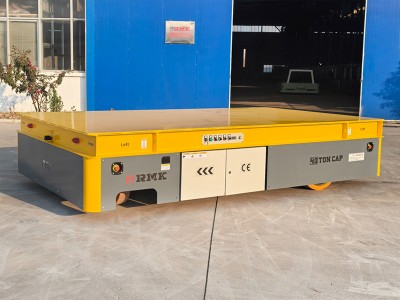

40 Tons Battery mold trackless transfer cart
15 tons injection mold battery trackless transfer cart
Heavy load 20 tons material trackless transfer cart
Industrial 5 tons battery trackless transfer cart
Heavy duty 5 tons materials trackless transfer cart
Customized 2 tons coil battery transfer cart

Typical Application

Multi-device cooperation

In intelligent factories and automated workshops, transfer carts/trolleys must be highly intelligent or AGVizd, and can work with other equipment and operation platforms to realize intelligent manufacturing and fully automaed production. In response to such needs, Remarkable has designed and produced multifunctional transfer cart and multivehicle coordinated operation transfer cart. Various devices can be installed on the countertop of the multifunctional transfer cart and multivehicle coordinated operation transfer cart to fit the intelligent requirements and automated programs in customers' production processes.

Anti-high temperature & Explosion-proof

In industries such as metallurgy, coal, military, nuclear power, Chemical, sandblasting, spray painting, transfer carts/trolleys usually work in high-temperature conditions, and anti-high temperature & explosion-proof are necessary functions of transfer carts/trolleys. Coping with high temperature environment, Remarkable proposed the following solutions: using anintegral frame structure that is compressive, tensile, and anti-high temperature; installing high load bearing wheels and hot dip galvanizing grille plates with good heat dissipation performance. In order to make a cart/trolley has explosion-proof function, the electric box, wheels, car body and remote controller we have configured for it have reached explosion-proof level.

Complex and special environments

Sometimes, industrial materials need to be transported in complex and special environments, which asks more from transportation tools. Our steering wheel omnidirectional mobile trackless transfer carts and RGV automated rail transfer carts/trolleys (such as the ferry rail transfer trolley and the vertical and horizontal moving automated rail transfer trolley) can solve this kind of problem. The advantages "free and flexible driving in all directions and small turning radius" of the steering wheel omnidirectional mobile trackless transfer cart, the design of "the main vehicle and the sub-vehicle" of the rail ferry transfer trolley and the rail change function of the vertical and horizontal moving automated rail transfer trolley are specially designed for complex and special environments.

PS:In addition to the applications described above, Remarkable can solve many more industrial material handling problems. We are able to meet all your needs!

Application Scenario Display

Metallurgical industry

Foundry

Steel Manufacturing

Automotive

Military

Shipyards

Chemical industry

Power Generation

Petroleum

Railway

Intelligent manufacturing

Smart Warehousing

Port wharf

Nuclear power

Faq

Frequently Asked Questions

Q: What Material To Handle?

A : ----------

Q: What’s The Transfer Car’s Load Capacity And Table Size You Need?

A : All Of Our Transfer Cars Are Made To Order, We Can Design It According To Your Requirements And Needs.

Q: Cart Traveling Type?

A : RailWheel

Q: Loading Capacity?

A : --------------Tons

Q: Platform Size?

A : ---------------Mm*-------------Mm

Q: Power Supply?

A : CableBus BarRailBatteryLow VoltageOther

Q: What Cargo Will The Car Transport?

A : Our Transfer Car Is Suitable For Steel Mill, Aluminum Plant, Metallurgical Industry, Mold Factory, Material Transfer Workshop, Shipyard, Crane Parts Transfer, Cable Coil Transfer, Precast Concrete Transfer, Ladle Transport And So On.

Q: Will The Car Move On The Cement Floor Or On The Track?

A : If It Moves On The Track, Have You Installed The Track?If It Moves On The Cement Floor, Is There Any Slope, Water Or Oil On The Floor?

Q: What’s The Car’s Working Time Per Day And Moving Distance In Single Direction?

A : We Can Suggest The Power Supply Mode For You According To Your Working Time And The Car’s Moving Distance.

Q: How Many Transfer Cars Do You Want?

A : We Don't Have A Minimum Order Limit, But We Can Give You A 5% Discount If You Buy More Than 3 Sets Of Cars.

Q: What Power Supply Mode Do You Prefer?

A : There Are Some Power Supply Modes For You Choosing, Such As Battery Power, Cable Reel Power, Cable Drum Power, Low Voltage Rail Power, Busbar Power And Diesel Engine Power.

Q: What Delivery Term Do You Prefer? FOB/CIF

A : If CIF, What’s The Destination Seaport?If FOB, We Usually Deliver The Car To Qingdao Port, But We Can Accept Your Designated Seaport.

Q: Price Term?

A : Ex-WorkFCAFOBCIF/CIPDDP/DDU

Q: What Term Of Payment Do You Accept?

A : Generally Speaking, We Accept 50%T/T Deposit In Advance,The Balance 50% Is Paid By T/T Before Dispatch. However, 30% T/T Deposit In Advance, The Balance 70% Is Paid By T/T Before Dispatch Also Can Be Accepted To Meet Your Demand In Order To Further Cooperation. Of Course, The L/C Also Is OK.

Q: How Long Is The Delivery Time?

A : About 45 Days, According To The Customer's Requirements To Complete The Delivery Time.

Q: How Many Certificates?

A : ISO9001、CE、SGS And So On.

Our products have certificates of CE, ISO9001, etc.

4P = Prediction + Pretreatment + Process + Performance

The FirstP

Prediction

At the very beginning of formulating a solution, our engineers will predict the faults that might occur during the equipment utilization relying on their rich experience, and avoid quality risks in advance.
The SecondP

Pretreatment of Material

Before getting inside the warehouse, all steel plates must be pretreated and testified to be qualified.
The ThirdP

Process Inspection

There is quality inspection in every process. The previous process can be allowed to enter the next one only if it is qualified. The whole process inspection records must be well preserved.
The FourthP

Performance Test

Before delivery, all the transfer carts/trolleys must undergo performance test, including load forward and backward, obstacle avoidance, omnidirectional mobile, slope climbing, lifting, wireless remote control, etc.
