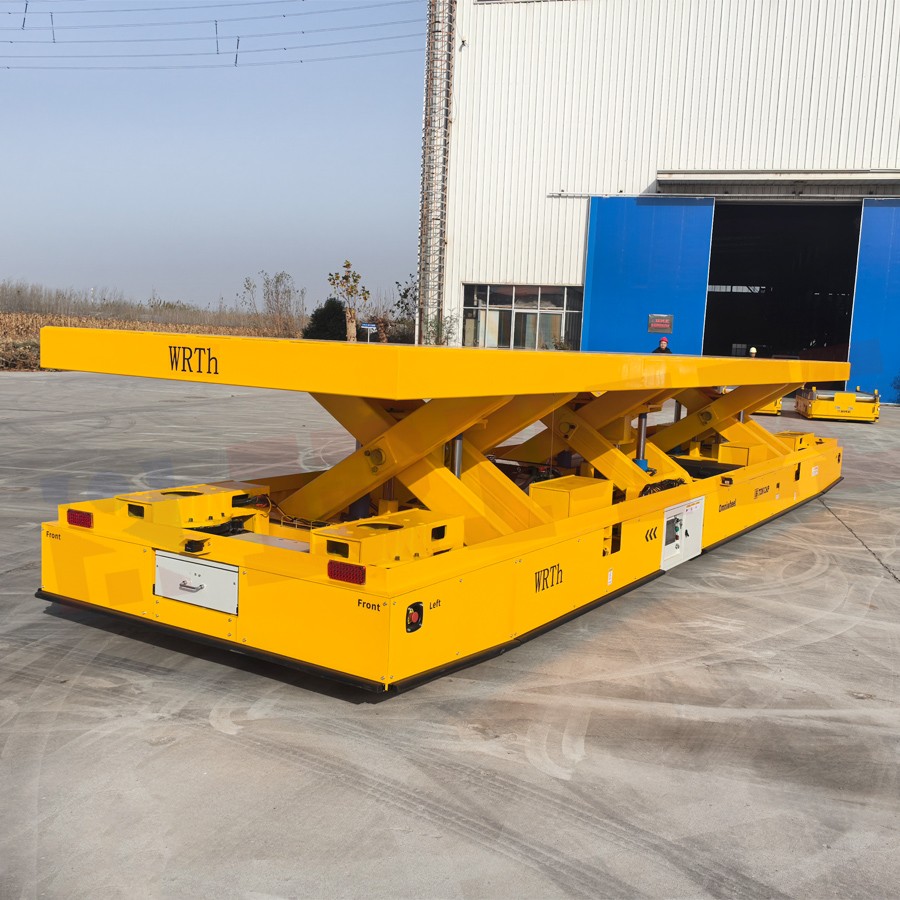

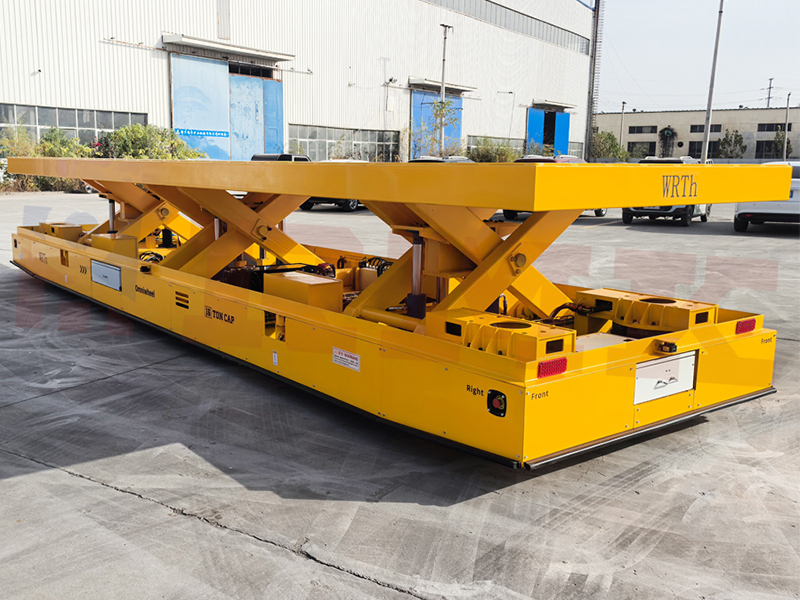

16 Ton Three-Scissor Synchronous Lifting Omnimove battery transfer cart With a platform size of 8000mm × 2000mm and a lifting stroke of 600mm, it adopts an integrated platform lifting design. We have achieved further technological innovations by implementing a three-scissor synchronous lifting mechanism, which ensures the required lifting height for the large platform, meets heavy-load demands, and guarantees safety and stability during transportation and lifting operations. Combining the lifting capacity of traditional forklifts with the flexible maneuverability of omni-directional mobile platforms, this cart is particularly suitable for industrial scenarios with limited space that require precise positioning and transportation of heavy equipment.
This transfer cart is a high-tech material handling equipment integrating heavy-load transportation, precise positioning, and lifting/loading-unloading functions.
Steering Wheel System: Achieves omni-directional movement through a combination of motor drive and precision steering control.
Advantages: Significantly saves space required for turning and position adjustment, while delivering exceptional maneuverability and positioning accuracy.
Cart Body Structure: A robust steel frame ensures it can withstand a 16-ton load and 120% heavy-load impact.
Power System: Typically electric, equipped with high-capacity lithium batteries to provide clean and low-noise power.
Drive and Steering System: Includes steering wheels, drive motors, reducers, and precision encoders.
Lifting System: Consists of a hydraulic power unit, hydraulic cylinders, and a fork platform, adopting a three-scissor synchronous lifting system.
Customized for a Russian client, this 16 ton lifting Omnidirectional mobile transfer cart is designed for transporting heavy materials during the manufacturing of trains and high-speed rail vehicles. Prior to delivery, multiple heavy-load tests were conducted to rectify and optimize the system, adjust levelness and stability, ensuring we deliver a high-quality transfer cart to the client.
Intelligent trackless transfer cart
Trackless transfer cart applied in the water conservancy industry
Motor factory handling cart 30 tons battery transfer cart
Industrial 30 tons hydraulic lifting heavy-duty trackless transfer cart
Customized trackless transfer cart
80 tons hydraulic steering trackless trolley
Intelligent trackless transfer cart
Trackless transfer cart applied in the water conservancy industry
Motor factory handling cart 30 tons battery transfer cart
Industrial 30 tons hydraulic lifting heavy-duty trackless transfer cart
Customized trackless transfer cart
80 tons hydraulic steering trackless trolley
At the very beginning of formulating a solution, our engineers will predict the faults that might occur during the equipment utilization relying on their rich experience, and avoid quality risks in advance.
Before getting inside the warehouse, all steel plates must be pretreated and testified to be qualified.
There is quality inspection in every process. The previous process can be allowed to enter the next one only if it is qualified. The whole process inspection records must be well preserved.
Before delivery, all the transfer carts/trolleys must undergo performance test, including load forward and backward, obstacle avoidance, omnidirectional mobile, slope climbing, lifting, wireless remote control, etc.
