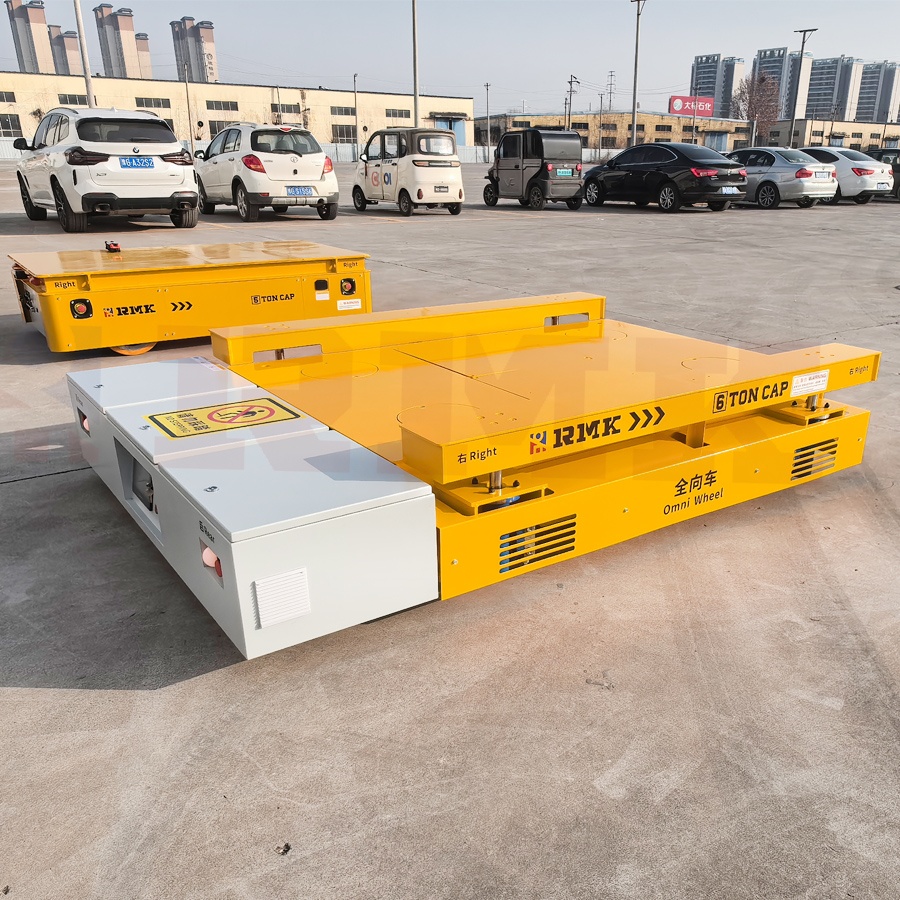

In narrow warehousing environments, there is a classic challenge: oil drums are locked under fixed, ultra-low shelves, where ordinary forklifts cannot enter and traditional AGVs cannot reach. Faced with this demand that stumped many manufacturers, our solution is the 4-Wheel Independent Drive Lifting Omnidirectional Transfer Cart.

Technical Breakthroughs for the “Impossible”

The requirements from the Japanese customer were extremely demanding:

Transporter dimensions: 2400*1600 mm

Total height: within 400 mm

Equipped with lifting function

This meant the cart had to move under the racks like a “ground-hugging vehicle” and then smoothly lift heavy loads by 200 mm.We broke through the physical limits of traditional hydraulic and electronic control systems and developed an ultra-thin lifting omnidirectional cart:

Omnidirectional Flexibility: Multi-wheel drive (steering wheel system) enables 360° rotation on the spot and movement in any direction, perfect for maneuvering in confined spaces.

Ultra-low Access: Overall height strictly controlled at 400 mm, ideal for the narrow clearance under ultra-low shelves.

Powerful Lifting: Integrated lifting system inside the ultra-thin body, with a lifting stroke of 200 mm, easily lifting oil drums out of the racks.

From 4 Wheels to 16 Wheels, From 1 Ton to Hundreds of Tons

Whether it is a responsive 4-wheel independent drive model or a 16-wheel drive heavy-duty platform for hundreds of tons, we can customize according to ground conditions and load requirements.This is not just a transfer cart – it is your technical solution for non-standard handling challenges.

When space is compressed to the extreme, only absolute technical strength can lift hope for material handling.
