Home>Products>Automated rail transfer trolley

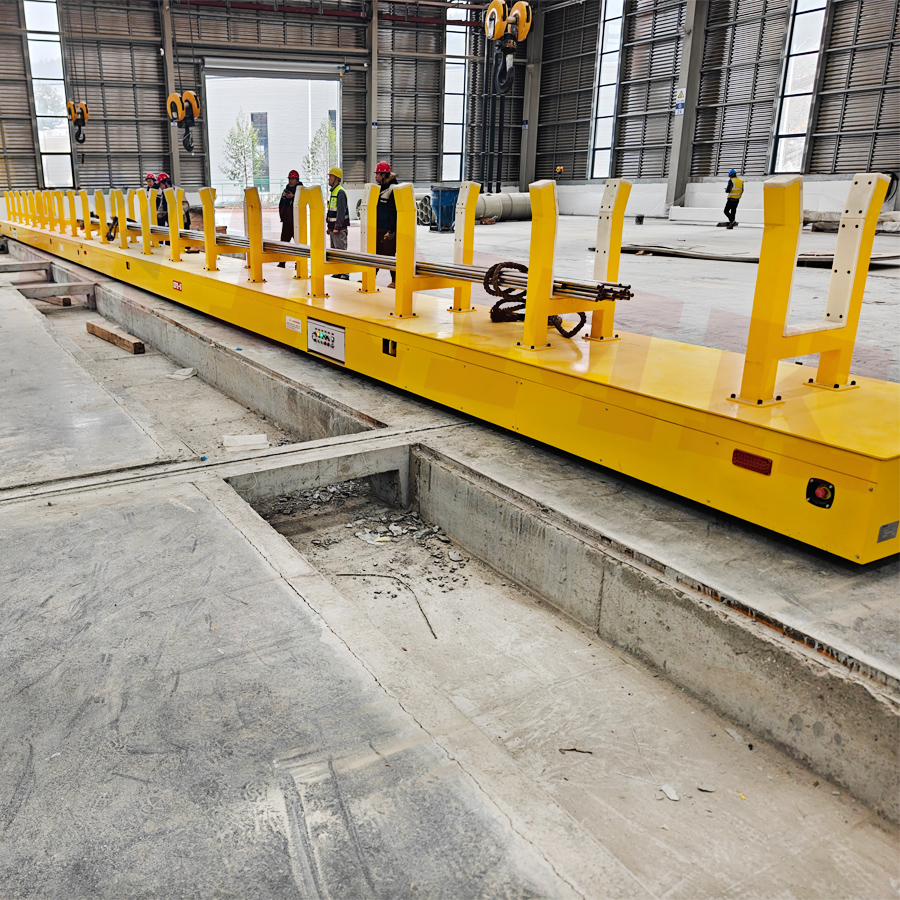

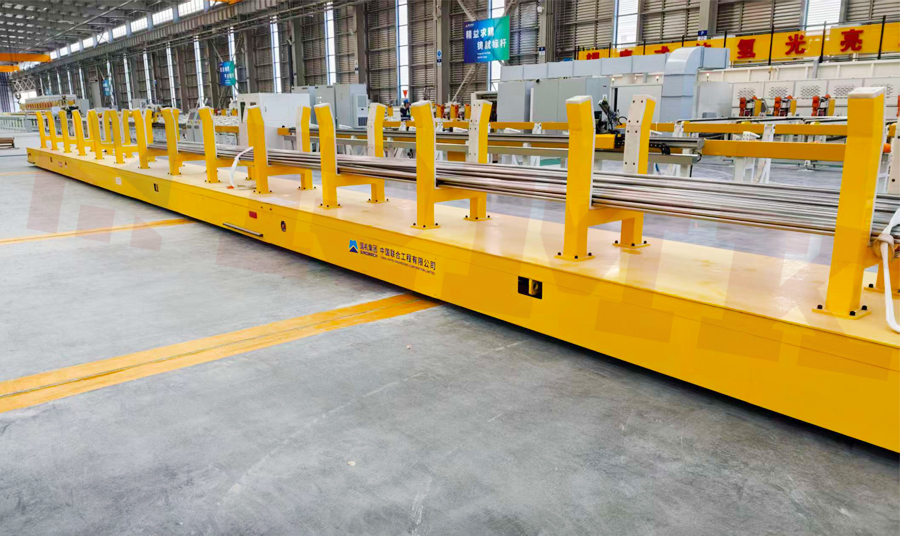

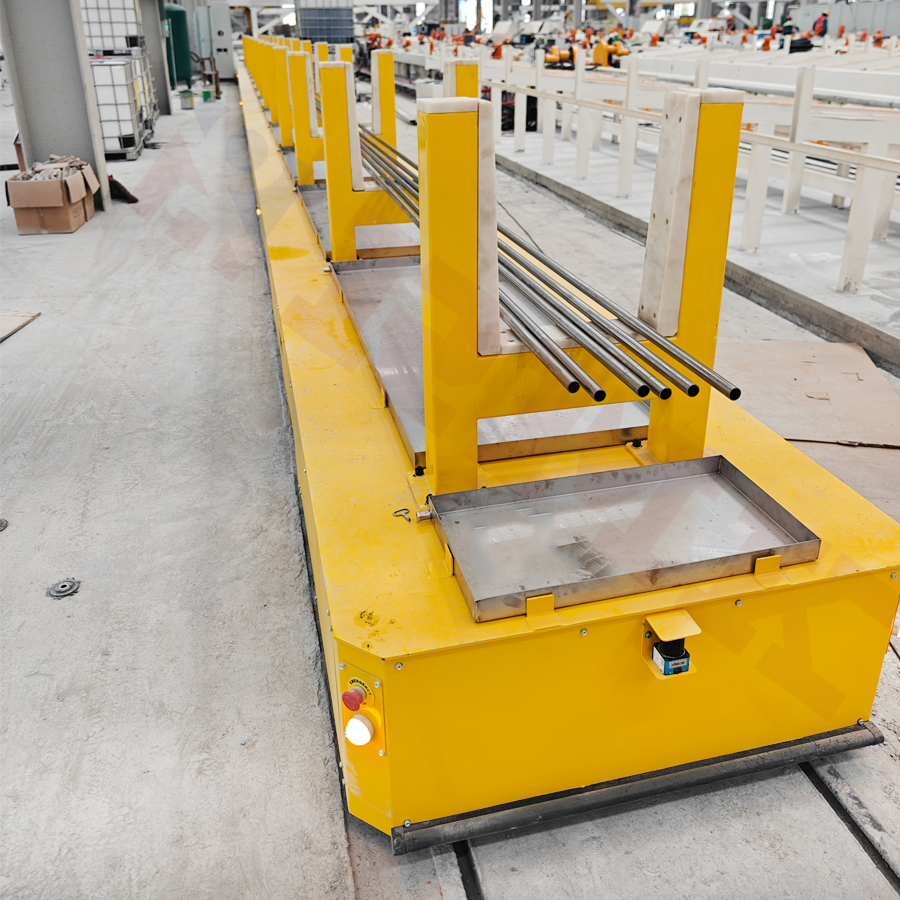

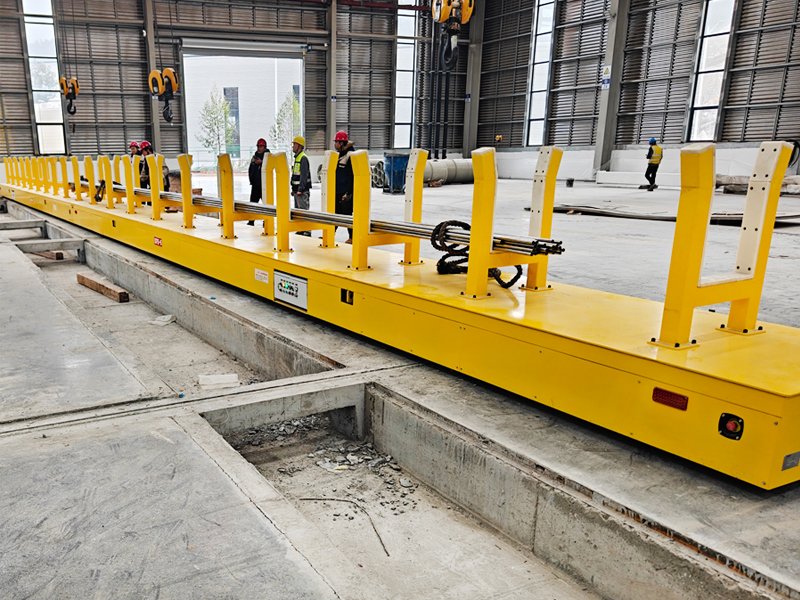

Steel Rail Transfer Cart-38m Long Tabletop

Applied to the production site of customers' ultra-long precision stainless steel pipes, for the transportation of ultra-long steel pipes. RGV-1, RGV-2 Track length: 212 m Trolley body length: 38 m Trolley body width: 1200 mm Trolley body height: +500 mm Power supply mode: Lithium battery power supply Maximum load capacity: 5 T Control mode: Automatic movement Travel speed: 45 m/min Configuration: Standard material racks with a spacing of 1.5 meters Functions: Equipped with laser radar, edge contact detection, equipment status feedback and alarm, limit position sensors and mechanical hard stops. Detection sensors (including deceleration and in-place stop detection) are installed at a total of 7 docking positions connecting with rolling mills, trusses, charging piles and other equipment.
Get price
Steel Rail Transfer Cart-38m Long Tabletop

Applied to the production site of customers' ultra-long precision stainless steel pipes, for the transportation of ultra-long steel pipes.

RGV-1, RGV-2

Track length: 212 m

Trolley body length: 38 m

Trolley body width: 1200 mm

Trolley body height: +500 mm

Power supply mode: Lithium battery power supply

Maximum load capacity: 5 T

Control mode: Automatic movement

Travel speed: 45 m/min

Configuration: Standard material racks with a spacing of 1.5 meters

Functions: Equipped with laser radar, edge contact detection, equipment status feedback and alarm, limit position sensors and mechanical hard stops.

Detection sensors (including deceleration and in-place stop detection) are installed at a total of 7 docking positions connecting with rolling mills, trusses, charging piles and other equipment.
