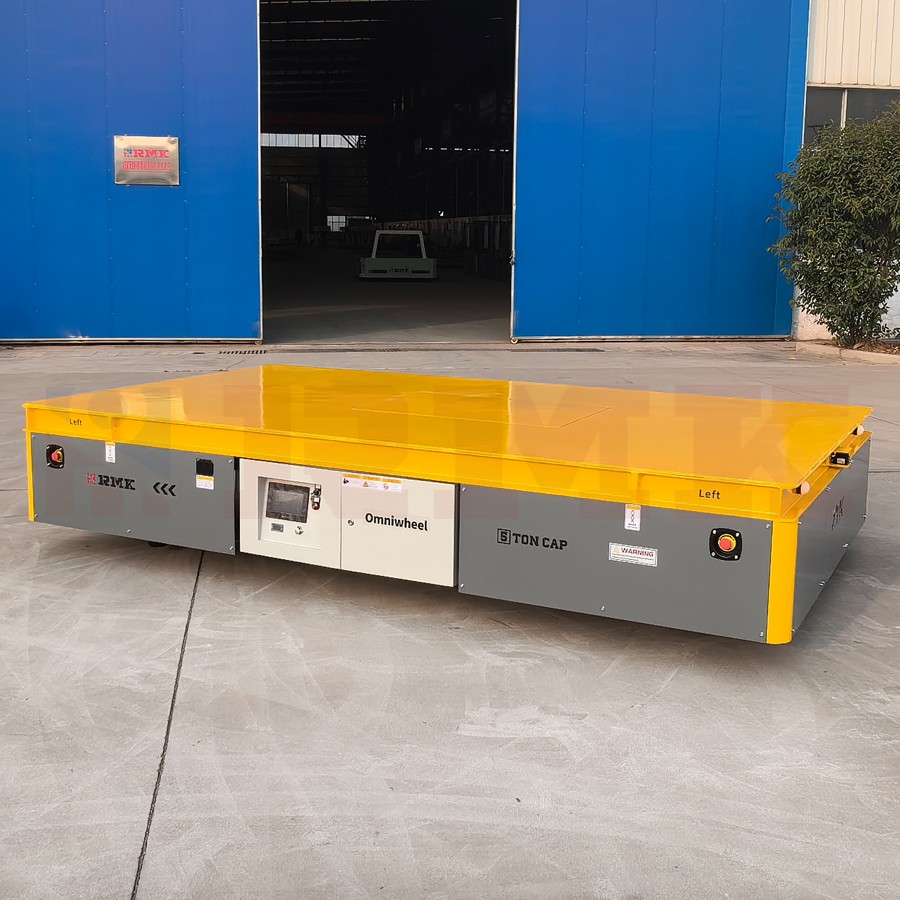

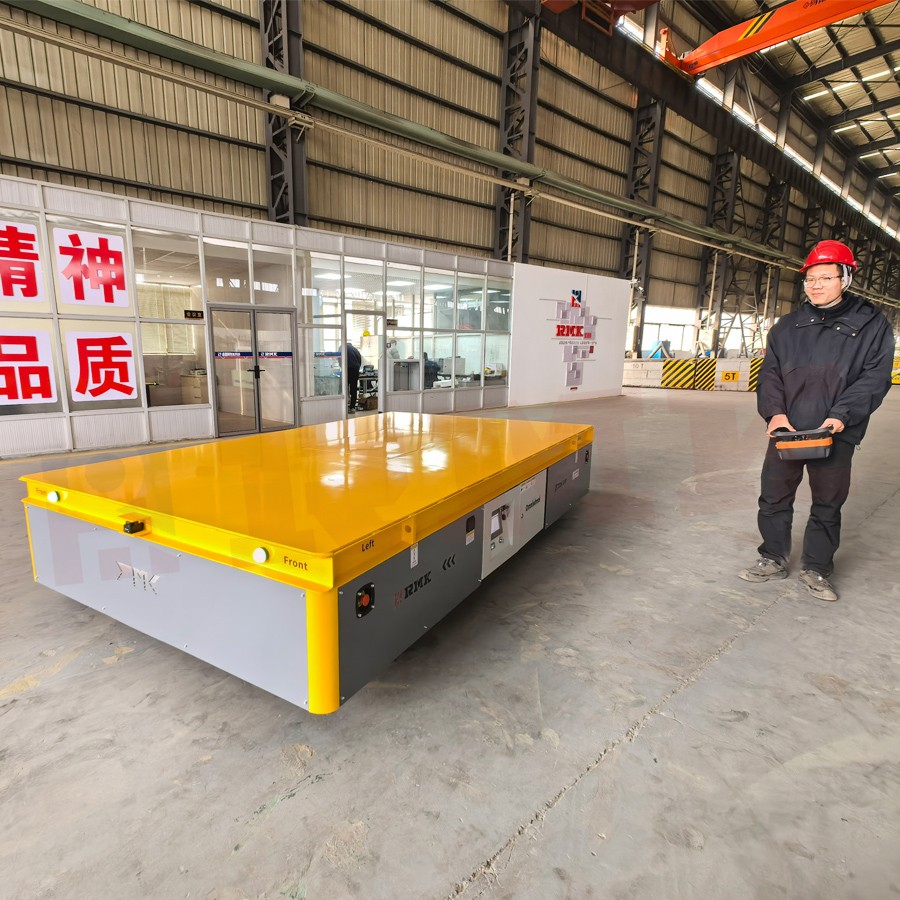

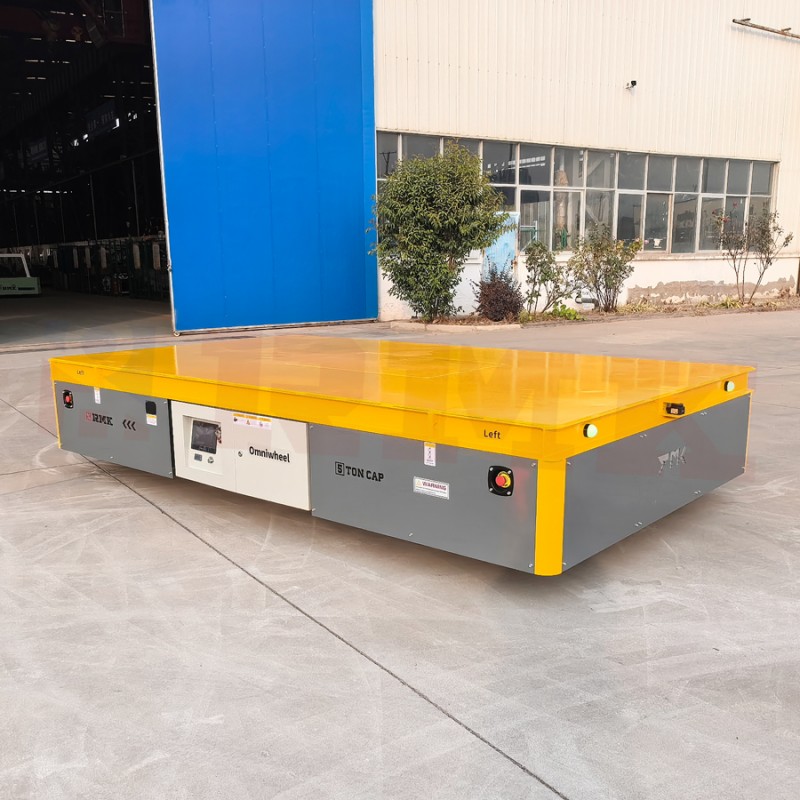

5 Tons Omni-directional Transformer Transfer Carts

This 5 Tons Omni-directional Transformer Transfer Carts powered by lead-acid batteries, designed and developed by Henan Remarkable, can move in all directions and move flexibly in narrow spaces. This heavy load transfer trolley has zero turning radius and can rotate 360 degrees in place, move vertically and horizontally, tilt and other operational functions, greatly reducing labor costs and improving material transfer efficiency. In addition, protective devices such as roller racks, V-frames, and guardrails can be installed on the transporter's countertop. Special safety measures have also been designed, such as emergency stop buttons around the transport platform. In case of an emergency, the emergency stop button can be pressed and the car will immediately stop running. Laser scanning sensors can also sense people or obstacles in front and behind the car, effectively reducing safety issues that may arise during transfer vehicle operation.

Main technical details about the heavy load material transport platform:

1. Load capacity: 5 tons

2. Table size: 3000*2000*600mm

3. Power supply mode: Maintenance free lead-acid battery

4. Speed：0-20m/min, it can be customized

5. Operate mode: wireless remote control +wire hand pendant

6. Painting color: Yellow+gray, it can also be customized

7. Brake: electromagnetic brake

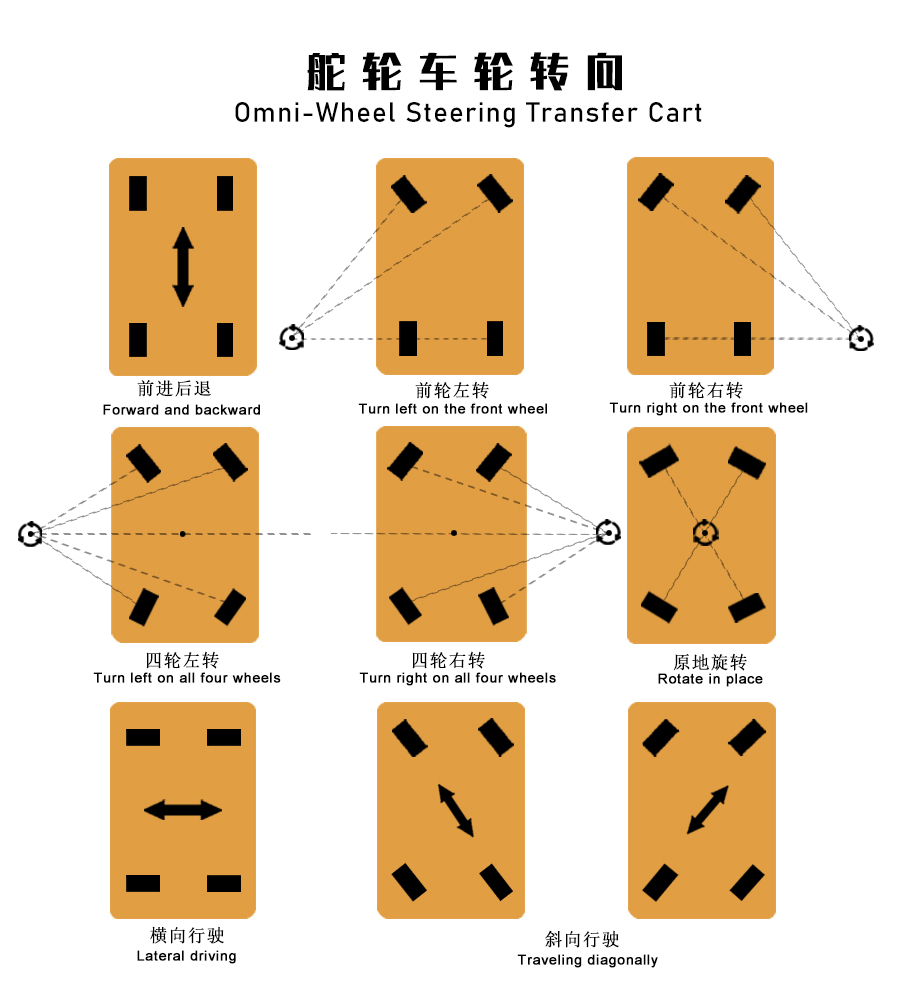

8. Move way： forward, backward, Vertical and horizontal movement, 360 degrees rotation in place, oblique movement
